Galvanized Steel Frame Medium Efficiency Bag Air Filter F7 F8 F9

Product Categories

Sichuan Huajie Purification Equipment Co., Ltd.

Contact Now

Galvanized Steel Frame Medium Efficiency Bag Air Filter F7 F8 F9

Name: Galvanized Steel Frame Medium Efficiency Bag Air Filter F7 F8 F9
Brand: TRAIRF
Price: 9.00 USD

Buy cheap Galvanized Steel Frame Medium Efficiency Bag Air Filter F7 F8 F9 product

Place of Origin : Sichuan, China

Brand Name : TRAIRF

Packaging Details : 1. FCL Shipment Order, using 5 layers carton case
2. LCL Shipment order, using wooden case package outside
3.Customization

Supply Ability : 10000 Set/Sets per Month Air Conditioning Dust Collector Air Filter Bag F9

MOQ : 50 sets

Price : $9.00/sets 50-199 sets

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 2-30days

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising C

Efficiency : F9, F9

Construction : Bag Filter

Dimension(L*W*H) : 592*592*500mm

Product name : G4 F5 F6 F7 F8 F9 Synthetic Media Excel Air Filter Bag

Frame : Galvanized Steel Frame

Filter Media : Synthetic fiber

Airflow : 1000-3200CMB/ H

Dust Holding Capacity : 200-2400 g/㎡

Port : Shenzhen,Shanghai

Contact Now

Medium Efficiency Bag Air Filter G4 F5 F6 F7 F8 F9

Medium efficiency air filter is mainly used in central air conditioning and central air supply system. It can be used for the medium filtration of the air conditioning system to protect the next level of the system filter and the system itself. In the place where the requirements of air purification and cleanliness are not strict, the air treated by the medium effect air filter can be directly sent to the user.

Product Materials, features, specifications

* Can be used multiple times

* Small resistance,
* Large air flow
* Low wind speed
Widely used for intermediate filtration of air conditioning system,
Widely used in central air-conditioning ventilation systems,
Widely used in air purification in pharmaceutical, hospital, electronics, airport, food, and other industries.

item	value
Applicable Industries	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Warranty of core components	Not Available
Core Components	media
Condition	New
Efficiency	F9
Construction	Bag Filter
Porosity	0.5um
Place of Origin	China
Province	Sichuan
Brand Name	TRAIRF
Dimension(LWH)	592592500mm
Weight	1KG
Warranty	Unavailable
Product name	G4 F5 F6 F7 F8 F9 Synthetic Media Excel Air Filter Bag
Frame	Galvanized Steel Frame
Filter Media	Synthetic fiber
Efficiency	F9
Airflow	1000-3200CMB/ H
Dust Holding Capacity	200-2400 g/㎡
Initial Pressure	50 Pa
Work Temperature	80 ℃
Application	Air conditioning system
OEM	Available

Product Parameters

Medium efficiency bag filter G4 F5 F6 F7 F8 F9 parameters are model, outside dimensions, rated air flow, initial resistance and efficiency. The size of the product can be determined according to customer requirements. There are standard size and non-standard size, in order to meet a certain number of requirements on the customer can request customization.

Model	Outside Dimensions(mm)	Rated Air Flow(m³/h)	Initial Resistance(Pa)	Efficiency(class)	Model Of Filter Media	Pockets
TR-ZXD-P1	495×295×500mm 20”×12” ×20”	1000	50-130 Pa	45% F5 65% F6 85% F7 95% F8 99% F9 colorimetric	F5 White F6 Green F7 Pink F8 Yellow F9 Yellow	5
TR-ZXD-P2	495×295×500mm 20”×12” ×20”	1800				5
TR-ZXD-P3	595×295×500mm 24”×12” ×20”	1300				6
TR-ZXD-P4	595×595×500mm 24”×24” ×20”	2200				6
TR-ZXD-P5	495×295×600mm 20”×12” ×24”	2600				8
TR-ZXD-P6	495×495×600mm 20”×20” ×24”	1200				5
TR-ZXD-P7	495×295×600mm 20”×12” ×24”	2200				5
TR-ZXD-P8	595×295×600mm 24”×12” ×24”	1600				6
TR-ZXD-P9	595×495×600mm 24”×20” ×24”	2700				6
TR-ZXD-P10	595×595×600mm 24”×24” ×24”	3200				8

* Customizable Size

Galvanized Steel Frame Medium Efficiency Bag Air Filter F7 F8 F9

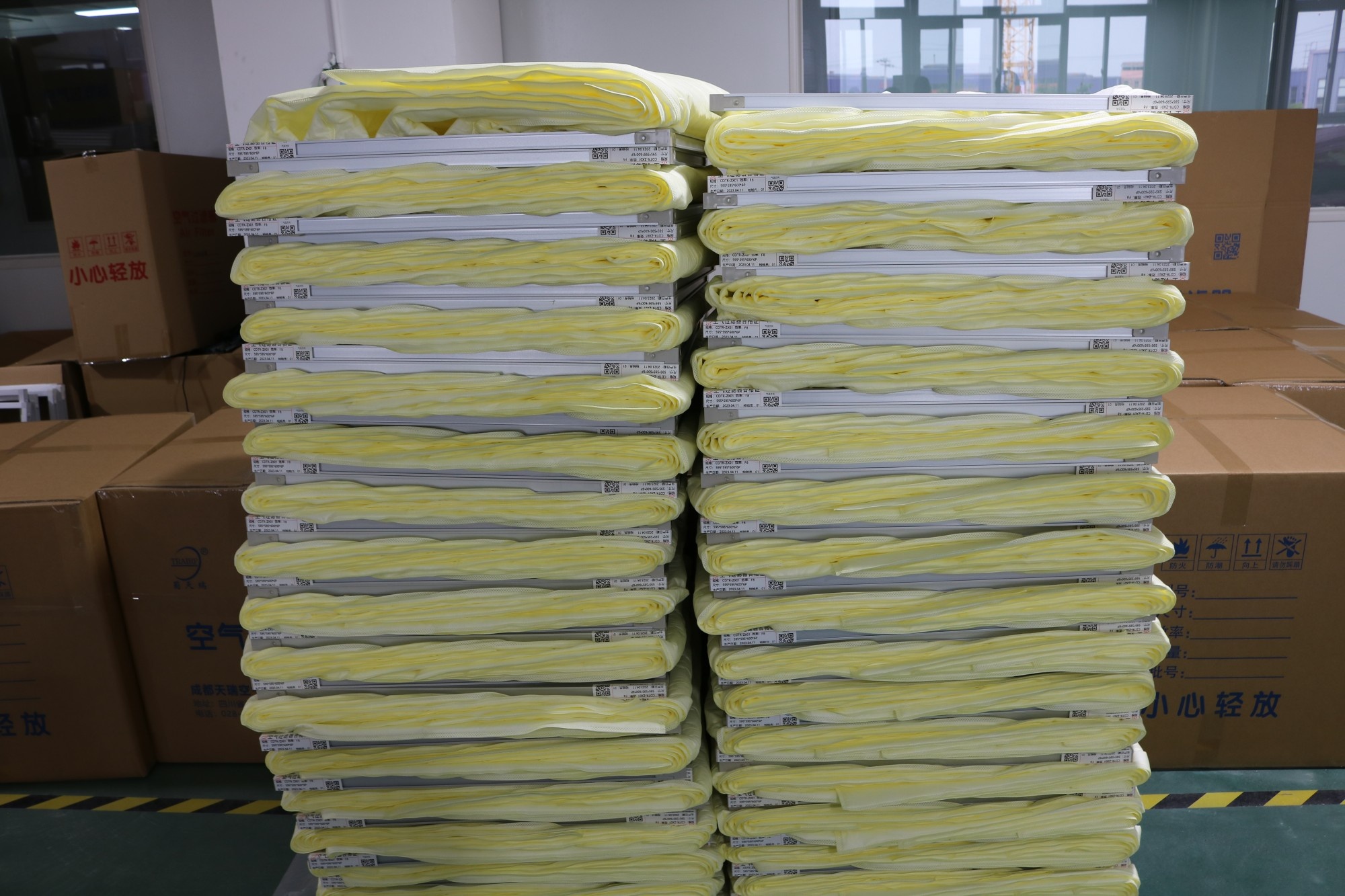

1. FCL Shipment Order, using 5 layers carton case

2. LCL Shipment order, using wooden case package outside

3.Customization

Our Customers

Our company has been recognized by many customers since its establishment. Among our customers, there are also many well-known brands, and we have reached long-term cooperation. This is undoubtedly the recognition of our products and the trust of our company.
